Homecare Suction Unit - Portable

Code: 32305


The Dynarex Resp-O2™ Homecare Portable Suction Unit™ features a compact, lightweight design for optimal portability for convenient suctioning at home or while traveling. The versatile Suction Unit features a rechargeable battery and power cord for optimal adaptability. The Suction Unit comes fully equipped with disposable suction canister, suction bacteria filter, connector, and tubing.

DETAILS

DETAILS

DETAILS

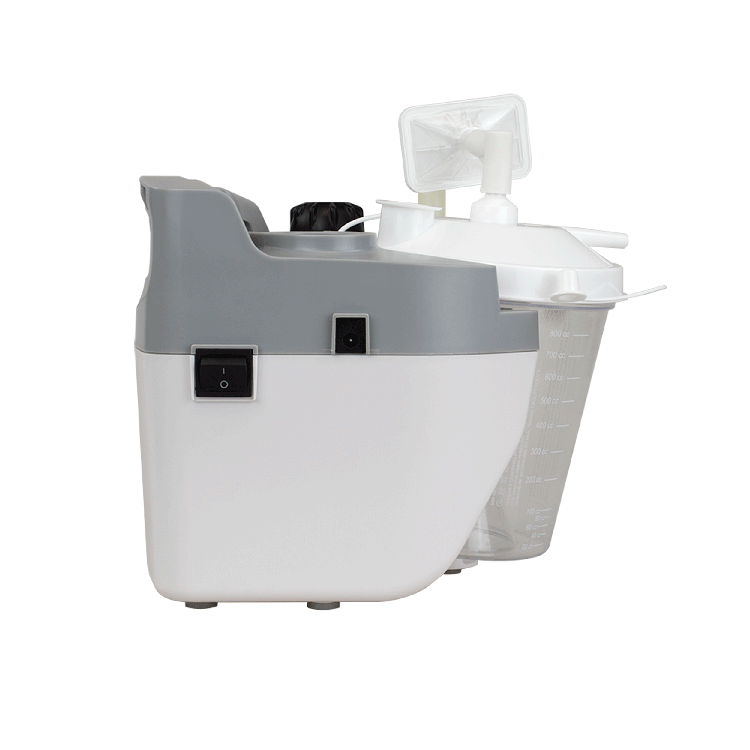

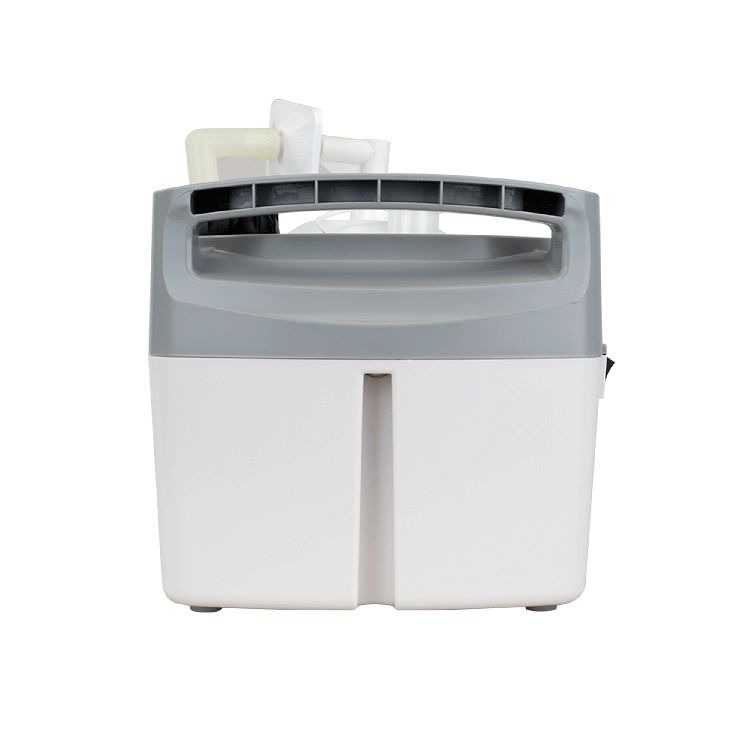

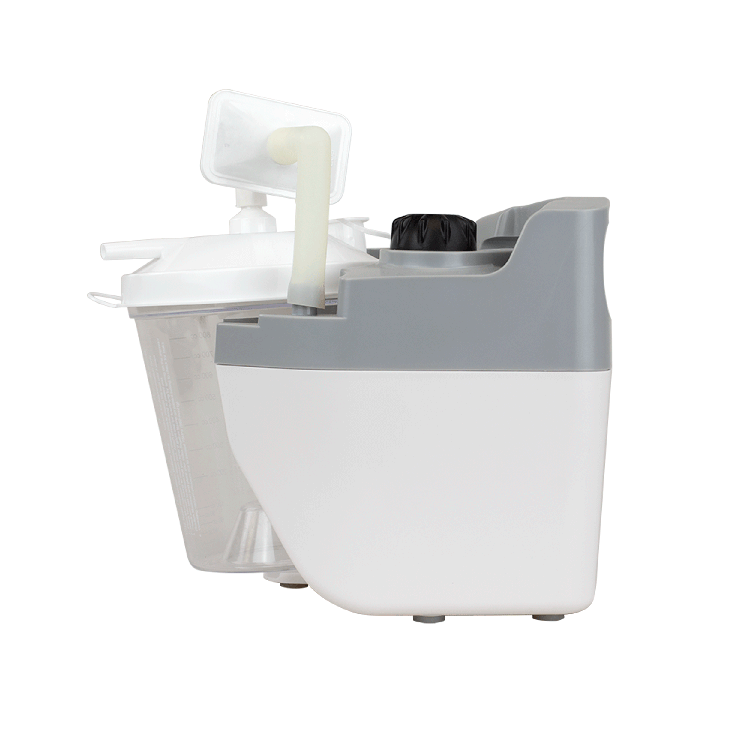

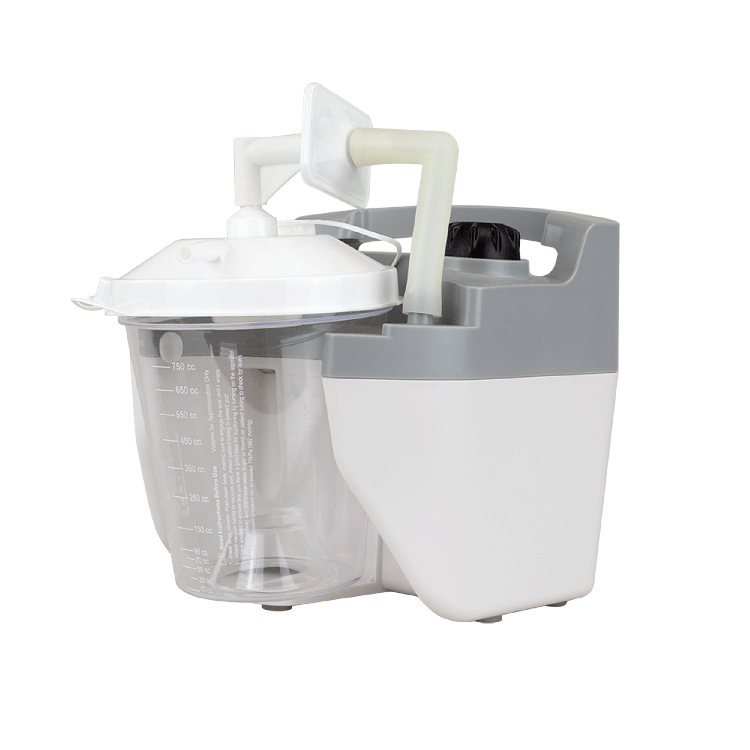

The Resp-O2™ Homecare Portable Suction Unit™ is a premium-quality suction unit designed to provide convenient, portable suctioning for use at home or during travel. The Unit comes with a rechargeable battery as well as AC/DC power cord for optimal versatility. The Suction Unit features a maximum vacuum of 600 ±20 mm Hg and a flow range of 22 ±10% LPM. The Suction Unit comes fully equipped with suction bacteria filter, elbow connector, elbow tube, and 6’ suction tubing. The Resp-O2 Homecare Suction Unit is equipped with an easy-to-read gauge to provide precise measurements of vacuum levels when needed for pediatric patients.



  • Designed for convenient, effective suctioning for home use and travel
  • Features compact, lightweight design (4.63 lb.) for optimal portability
  • Maximum vacuum of 600 ±20 mm Hg and a flow range of 22 ±10% LPM
  • Equipped with suction bacteria filter, elbow connector, elbow tube, and 6’ suction tubing
  • Includes an 800 cc disposable suction canister
  • Easy-to-read gauge for precise measurement
  • Rechargeable Lithium Ion battery provides up to 50 minutes of continuous operation

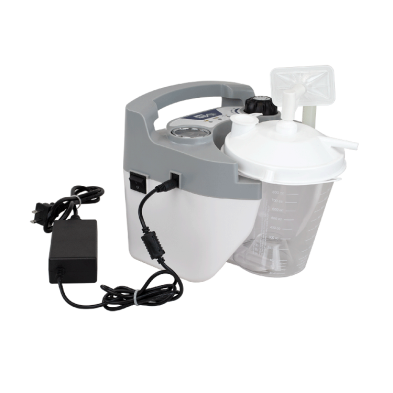

  • Includes AC/DC power cord for added versatility



SPECIFICATIONS

SPECIFICATIONS

Brand Name Resp-O2
Case Quantity 1/cs
Components Panel Label, Vaccum Gauge, Printed Circuit Board, Collection Bottle Assembly, Bacteria Filter, Lithium Ion Battery, Body, Compressor, Top Cover, Regulator
Prescription? (Y/N) Yes
Medical Device Listing (MDL) D028500
FDA Product Code JCX
FDA Class 2
Health Canada Class 2
Shelf Life NO
Sales Unit - Box Dimentions 10.2" D x 10.6" H x 10.6" W
Sales Unit - Actual Product Dimensions 19.5" H x 21.0" L x 19.0" W
Product Size - Actual Weight (Pounds) 4.6
Warranty - To consumer 36 months
Electrical (Y/N) Yes
Battery (Y/N) Yes
Battery Max Capacity 2200mAh
Battery Max Voltage 12.6
Battery Min Voltage 6.1
Standard Battery Voltage 11.1
Country of Origin Taiwan
